The L.210 Ultrasound Scan Bar

Methodology in Product Design (APD1) 2025

The L.210 Ultrasound Scan Bar is a high performance professional tool for rapidly investigating liquid contents of steel drum barrels with a volume of 210 litres (DIN EN ISO 15750-(1/2)). It enables crime scene investigators to quickly determine how much material a barrel contains and what kind of medium it is. The device uses the speed of sound which varies in every medium. By sending ultrasound inside the barrel, the device can detect the reflected waves from the opposite steel wall of the barrel and therefore determine the medium inside. It makes the work for the investigators not only faster by reducing the steps, but also makes it more safe, as less barrels have to be opened physically.

Cheolhun Cheon

Master's Programme in Advanced Product Design

Nils Heider

Master's Programme in Advanced Product Design

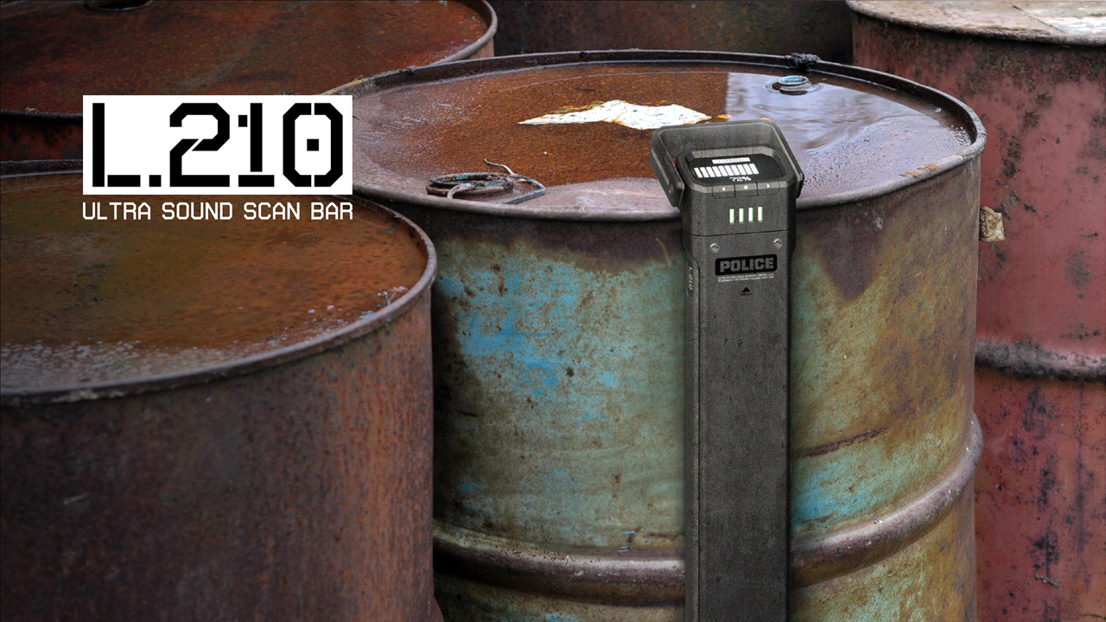

The L.210 Ultrasound Scan Bar measures and detects the content of drum barrels at environmental crime scenes.

The L.210 Ultrasound Scan Bar measures and detects the content of drum barrels at environmental crime scenes.

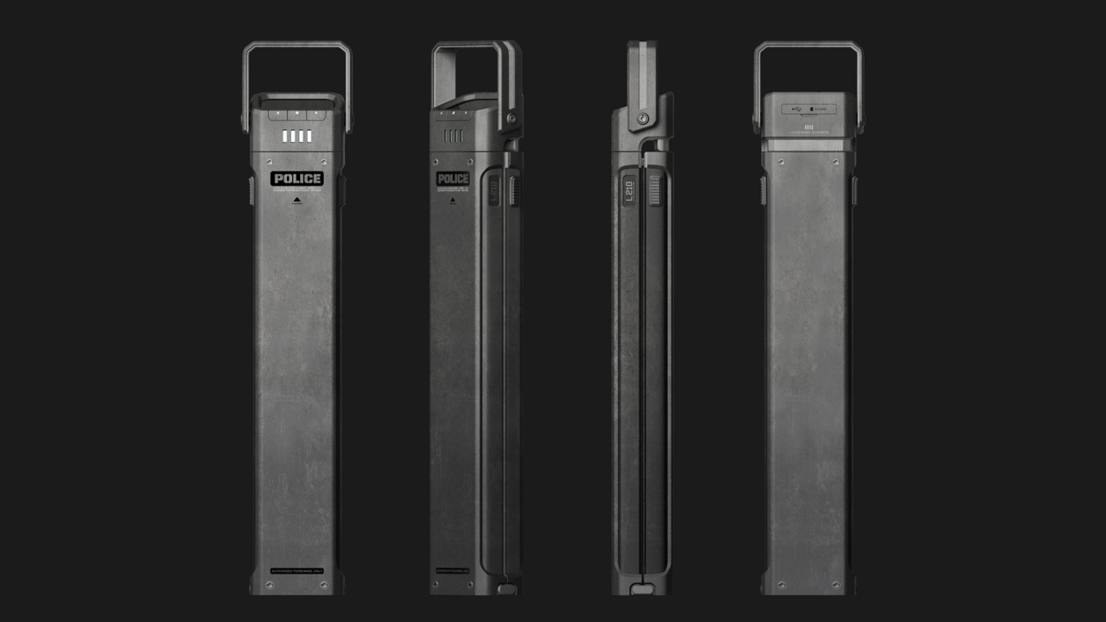

Views of the product.

Views of the product.

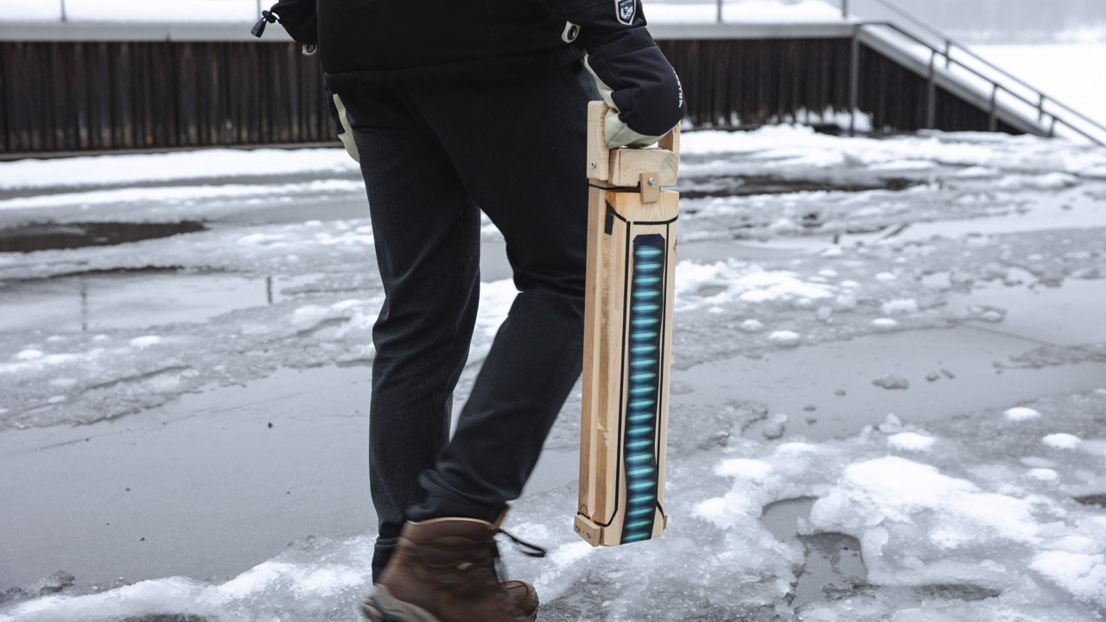

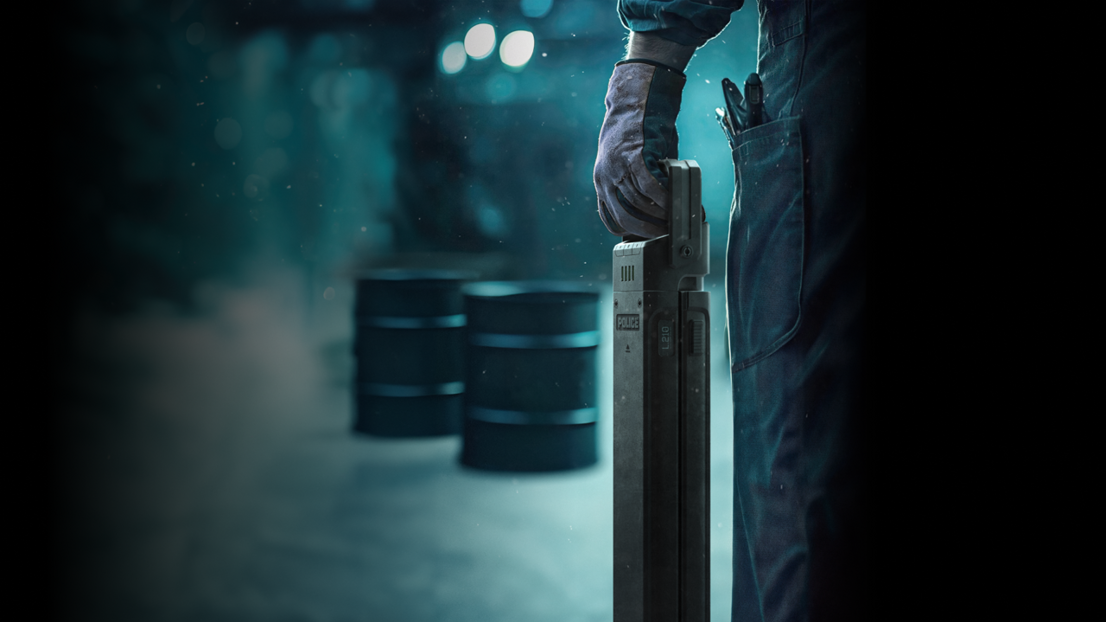

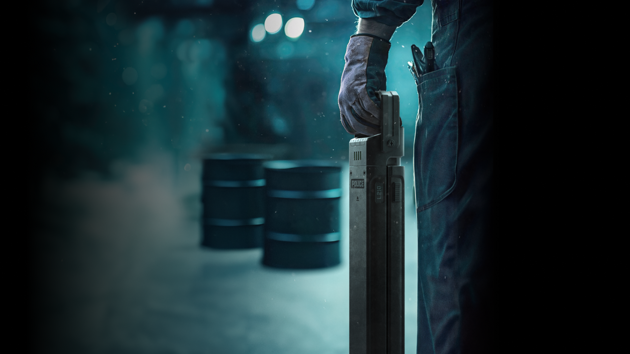

There's a handle at the top for easy carrying.

There's a handle at the top for easy carrying.

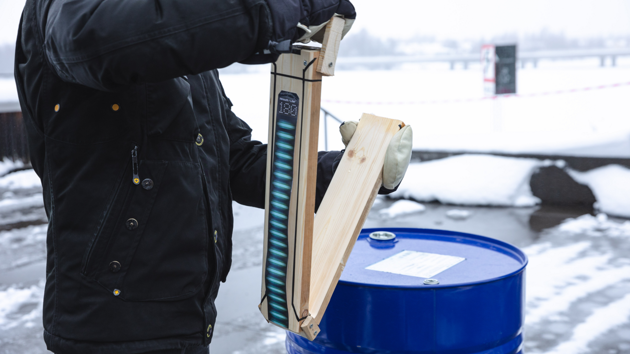

Foldable to minimise packaging size.

Foldable to minimise packaging size.

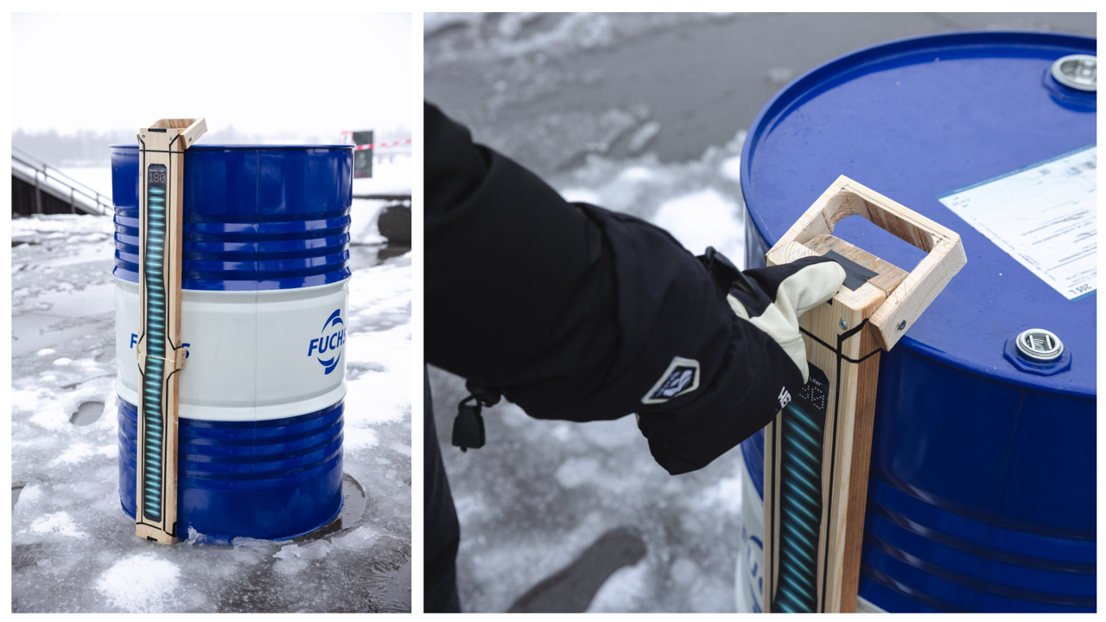

Interaction on the barrel.

Interaction on the barrel.

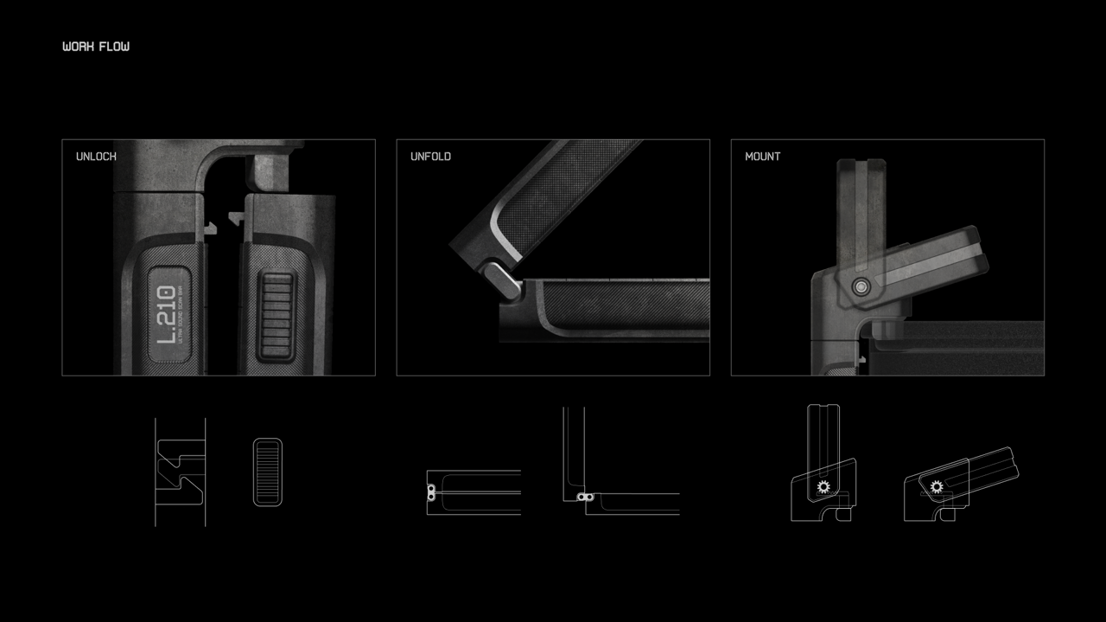

Product details: Lock to secure when folded, hinge to fold, moveable handle to lock to the drum barrel.

Product details: Lock to secure when folded, hinge to fold, moveable handle to lock to the drum barrel.

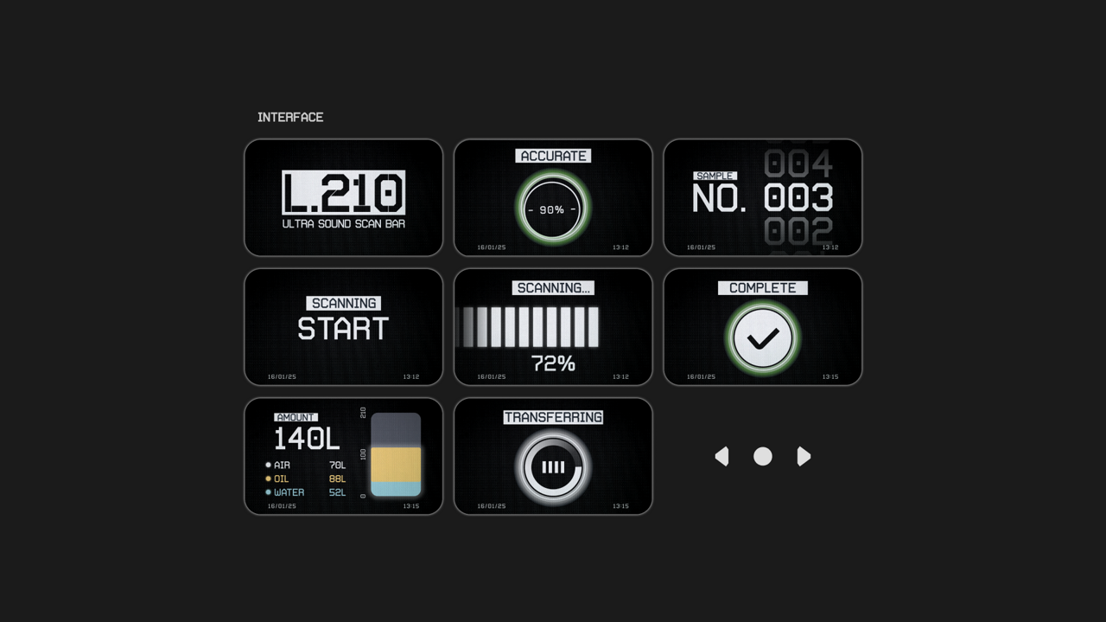

Interface elements for digital interaction.

Interface elements for digital interaction.

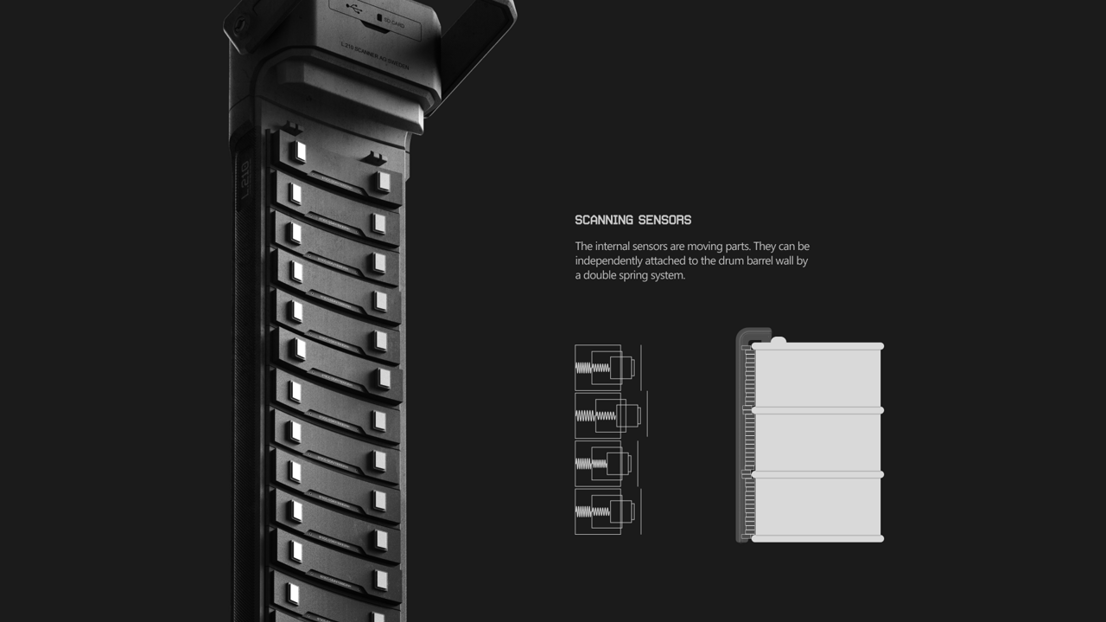

The ultrasonic sensors are individually movable as they have to touch the steel drum surface.

The ultrasonic sensors are individually movable as they have to touch the steel drum surface.

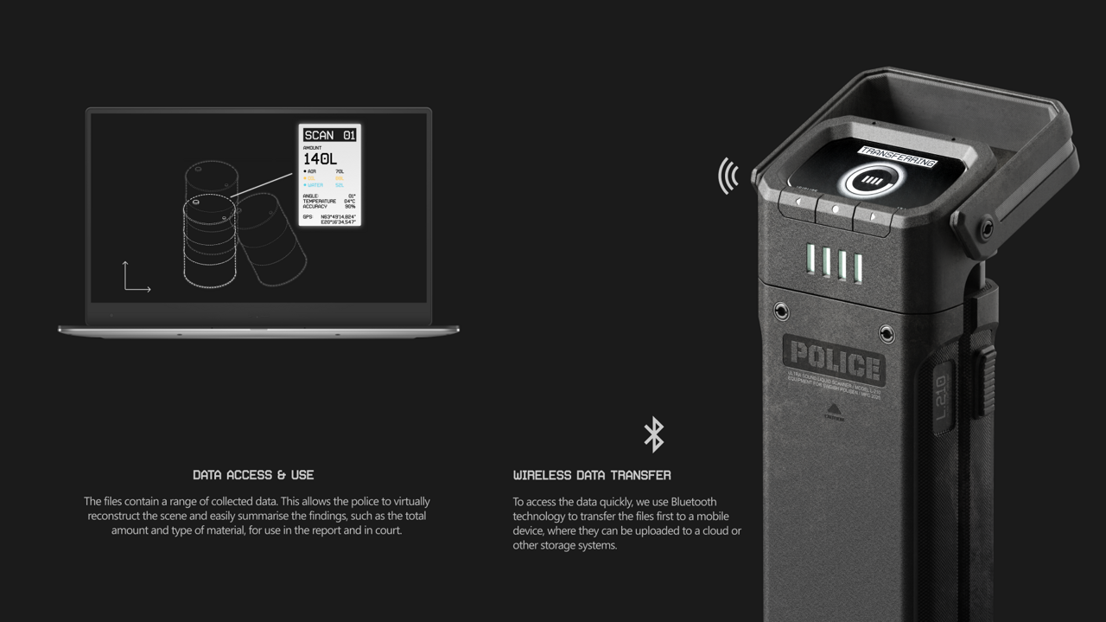

Results can be transmitted wirelessly. It provides detailed information about the scene for the police report.

Results can be transmitted wirelessly. It provides detailed information about the scene for the police report.

L.210 on site.

L.210 on site.
